OUR SYSTEMS

Our windows and doors are made from professional, certified steel profiles

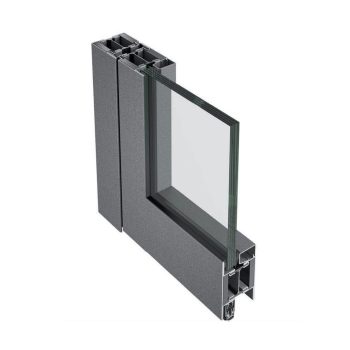

Fire doors and fire-resistant partitions of class E30/EW30/E60/EW60 can be easily assembled using the tried-and-tested Economy profiles. It is even possible to achieve fire resistance classes up to E120 for partition walls. The profiles with a depth of 50 have very narrow face widths. The appearance is identical to that of the other fire protection systems Economy 60, Janisol 2 and Janisol C4.

Materials / surface

  • Uncoated or strip-galvanised steel, suitable for powder coating or stove-enamelling
  • Stainless steel 1.4404 uncoated or polished

Element types

  • Single and double doors, with or without side panels and transom windows
  • Partition walls

Equipment

  • Steel and stainless steel hinges for welding or screw-fit
  • Integrated door closers
  • Multipoint locks (motorised also available)
  • Designer glazing beads
  • Emergency locks and panic push-bars

Special technical features

  • Dry glazing and glazing with putty
  • Central glazed panel
  • Connection to solid wall or lightweight wall construction
  • Door height up to 3.8 m with single-latch lock possible
  • Also possible with fire protection and smoke protection combined or only with smoke protection
  • Also possible without fire protection

Test certificates

  • Fire resistance class E30/EW30/E60/EW60 for doors and up to E120 for fixed glazing; tested in accordance with EN 1634-1
  • Smoke control in accordance with DIN 18095
  • Smoke control tested in accordance with EN 1634-3
  • Durability (C5) tested in accordance with EN 1191
  • Emergency exit door in accordance with EN 1125 / EN 179

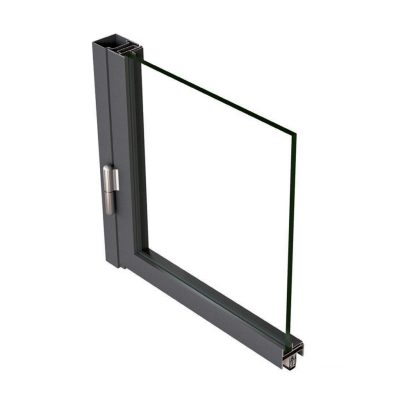

Slim steel profile system for interior doors and walls

The extremely reduced face width of Jansen Art’15, the new non-insulated steel profile system from Jansen, allows a unique design, while the steel material ensures a long service life. In this way, Jansen Art’15 not only meets the high design demands of ambitious architects, but also the high expectations of discerning clients in terms of design and function. Jansen Art’15 doors and partitions separate the entrance hall from the living space, the kitchen from the dining area, or the home office from the living room, without compromising on the generous space. The extremely narrow, highly resilient steel profile system always ensures durable, highly stable constructions in an unparalleled slimline frame.

Benefits

  • Minimal face widths
  • Transparent room divider in the interior
  • Three design options

Field

  • renovation and new construction

Available as:

  • Window-door
  • Projected top-hung window

Materials / surface finish

  • Bright
  • Strip galvanised steel

Window types / opening types

  • Interior doors, single and double-leaf, with sidelight and toplight
  • Interior fixed glazing

Fittings

  • Wet glazing or putty
  • Locks and handles for the window doors
  • Floor seals
  • Curved units
  • Glass thicknesses of 6 to 24 mm
  • Max. weight 100 kg

Special technical features

  • Basic depth of 50 mm
  • Very narrow face widths
  • Fixed glazing 25 mm
  • Door leaf 43 mm
  • Door meeting stile design 66 mm
  • Easy to fabricate
  • Door leaf sizes up to 900 x 2400 mm

Test certificate

  • Airborne sound insulation up to Rw 43 dB

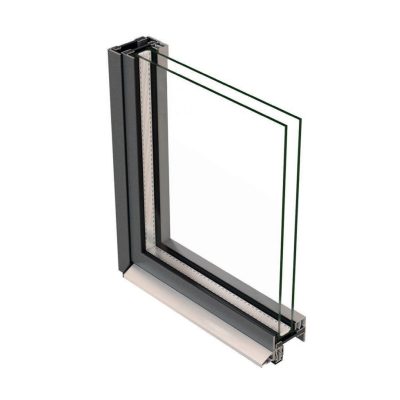

Doors made of steel, stainless steel and Corten steel with narrow face widths

Slim face widths, different design options (single-leaf, double-leaf, different threshold variants, including barrier-free, CE labelling, with or without sash bars, various lock versions, a wide range of materials – namely steel, stainless steel and Corten steel). Janisol Arte 2.0 doors are therefore the right choice for renovations to existing buildings and modern structures, where architectural freedom is desired.

Field of application

  • Renovation and new construction
  • Non-load-bearing partition or as a replacement wall

Materials / Surface

  • Strip galvanised steel, suitable for powder coating or enamelling
  • Stainless steel 1.4401, bright or polished
  • Corten steel

Element types

  • Single- and double-leaf doors, with and without fixed side sections or skylight, can be opened inwards and outwards
  • Sheet metal-clad doors with or without glass cut-outs

Equipment

  • 3D screw-on hinges made of stainless steel
  • Integrated door closer
  • Designer glazing beads
  • Mortise lock and multipoint lock

Special technical characteristics

  • Construction depth 60 mm
  • All-glass look

Test certificates

  • CE label in accordance with product standard EN 14351-1
    • Tightness against heavy rain up to Class 8A (450 Pa)
    • Air permeability up to Class 4 (600 Pa)
    • Resistance to wind load up to Class C5/B5 (2000 Pa)
    • Airborne sound insulation up to Rw 45 db
    • Heat transmission coefficient UD > 1.9 W/m2K
  • Shear coupling in accordance with EN 14024
  • Mechanical strength in accordance with EN 13115 up to Class 4
  • Impact resistance in accordance with EN 13049 up to Class 4
  • Durability in accordance with EN 12400 Class 7 (500,000)
  • Prefabricated barrier glazing in accordance with DIN 18008-4

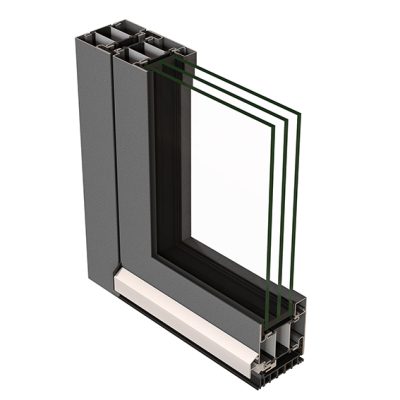

The Janisol HI door system fulfils maximum insulation requirements and, with respect to safety/security and durability, is also suitable for extreme service conditions – such as those in very busy public buildings. With triple glazing, it is easy to achieve doors with excellent thermal conductivity coefficients of Ud 1.0 W/m2K. Thanks to high-tech thermal break spacer bars made of glass-fibre reinforced plastic, the new door system also benefits from excellent structural values and achieves top values in system tests (air/water/wind/mechanics). With Janisol HI, Jansen sets new benchmarks in terms of contemporary architecture combined with excellent thermal insulation.

All of CORTIZO’s building systems are tested in the Testing Laboratory of our Technology Centre to guarantee the best performance of water tightness, air permeability and wind resistance, guaranteed by obtaining the maximum results in their test classifications.

Inspired by classic line designs,this new system allows to combine aluminium’s outstanding performance values with a steel appearance.
